In the semiconductor packaging field, not all devices are compatible with standard-specification carrier tapes. As a non-standard matching option, 9.5mm cover tape is specially built for niche-specification carrier tapes and special-structured micro devices, solving industry pain points such as poor cover tape width matching, bad sealing and abnormal placement in non-standard packaging, and becoming a “customized protection expert” for specialized device packaging.

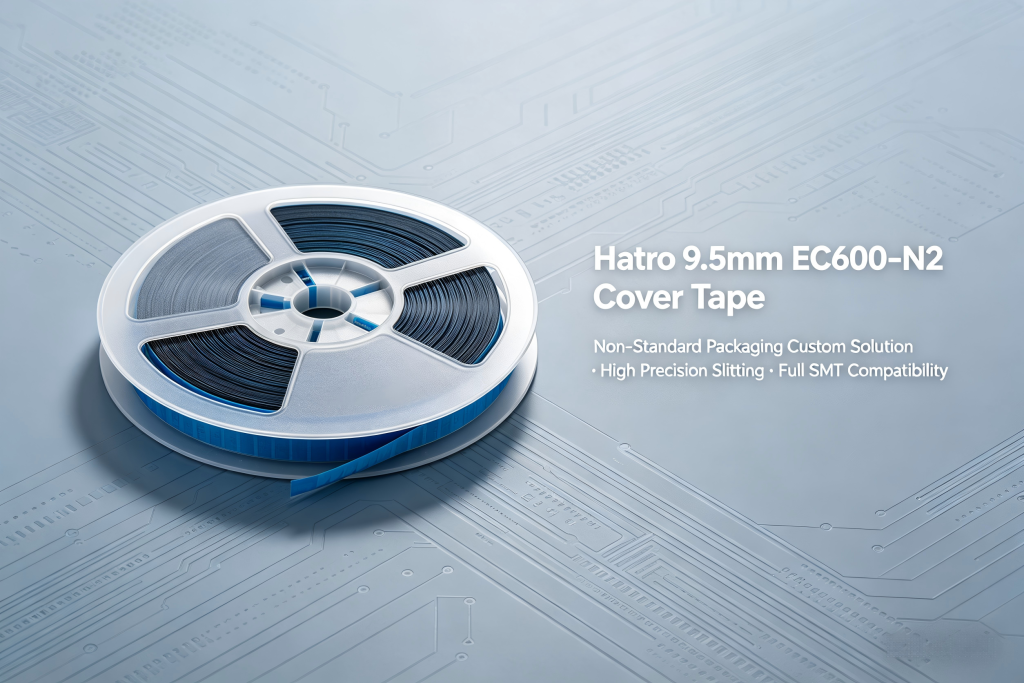

With years of experience in the packaging and testing materials field, Hatro has launched the 9.5mm precision heat-seal cover tape relying on the mature EC600-N2 substrate and high-precision slitting technology, breaking the industry status quo of “few categories, low precision and poor performance” of non-standard cover tapes. With the core advantages of customizability, high performance and high compatibility, it provides a reliable domestic solution for non-standard packaging scenarios.
High-Precision Slitting, 1:1 Precise Matching with Non-Standard Carrier Tapes
Targeting the dimensional particularity of non-standard carrier tapes, Hatro’s 9.5mm cover tape is processed with imported high-precision slitting equipment, with the width tolerance of slitted products strictly controlled at ±0.1mm and a uniform thickness of 52±5μm. It can be fine-tuned and adapted according to the sealing edge size and cavity structure of customers’ non-standard carrier tapes to achieve 1:1 precise fitting. Whether it is the packaging demand for special-width carrier tapes or special-shaped micro devices, it can achieve firm sealing and comprehensive protection, completely solving the problem of difficult cover tape matching in non-standard packaging.
Uncompromised Full Performance, Hard-Core Protection for Non-Standard Scenarios
Although it is a non-standard specification, the performance indicators of the 9.5mm cover tape are consistent with the standard version, with all parameters passing national standard testing: surface resistivity of 10⁶~10¹¹Ω/sq, long-lasting ESD electrostatic protection to guard the full-process safety of niche sensitive devices; light transmittance of ≥80%, adapting to AOI optical inspection to meet the testing needs of automated production lines; tensile strength of ≥20N and elongation at break of ≥90%, excellent mechanical performance, tension and winding resistance, adapting to the feeding needs of various SMT placement equipment; peel strength of ≥1.2N/15mm, the peel force after heat sealing is stably in the optimal range of 30-90g.f, no flying components or tape breakage, and the placement efficiency is maximized.
Strong Heat-Sealing Compatibility, Zero Cost for Production Line Transformation
Hatro’s 9.5mm cover tape adopts a universal heat-sealing formula, compatible with all standard SMT heat-sealing equipment on the market, without any transformation of the production line. Stable sealing can be achieved only by fine-tuning the heat-sealing temperature (120℃-180℃), pressure and time according to the actual carrier tape and device characteristics. Laboratory tests show that this cover tape has a wide heat-sealing temperature window, and the peel force fluctuation rate is ≤5% under different equipment and parameters, with extremely strong compatibility, saving customers production line transformation costs and machine adjustment time.
Full Coverage of Niche Scenarios, More Intimate Custom Services
The 9.5mm cover tape is widely applicable to various non-standard packaging scenarios: special-width carrier tape matching, special-shaped micro sensor packaging, niche power device tape-and-reel, customized semiconductor packaging and testing foundry, etc., covering niche high-end fields such as consumer electronics, medical electronics and security electronics. At the same time, Hatro provides exclusive customization services, which can adjust the cover tape thickness, peel force range and substrate color according to customer needs, with one-to-one technical support from a professional technical team, and full follow-up from sample testing to mass supply, making non-standard packaging more worry-free.
Custom Offer: Reach out to us for a free non-standard packaging adaptation solution, with samples shipped quickly within 1-3 days!
